プラスチック製モジュラーベルト

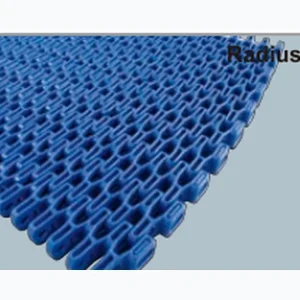

Plastic modular belts should be organised by the geometry that changes the conveyor decision: running path, pitch, conveying face and opening pattern. The comparison range covers straight-running configurations from 12.7 to 63.5 mm pitch, plus radius examples at 25 and 25.4 mm pitch. Several open-area levels are represented, but the available combinations are family-specific rather than interchangeable.For a new conveyor, choose the process and product support requirement first. For a replacement, measure the existing belt before choosing from the archive. Pitch, width, top face, hinge/pin geometry, underside engagement and sprocket information are more reliable identifiers than colour or a partial code.Browse by selection logicDecisionStart withStable support / fine transferFlat surface familyDrainage / airflowOpen grid familyHorizontal curveRadius / side-flexing familyDuty-specific faceSpecialty surface familyReplacement / new conveyor systemReview belt with sprockets, pins, wear strips and guidesWhat still needs confirmationBelt width, material, operating temperature, speed/load limits, sprocket arrangement and any product-contact documentation are configuration-specific. Send the actual conveyor duty or replacement dimensions so those items can be confirmed for the ordered belt.
